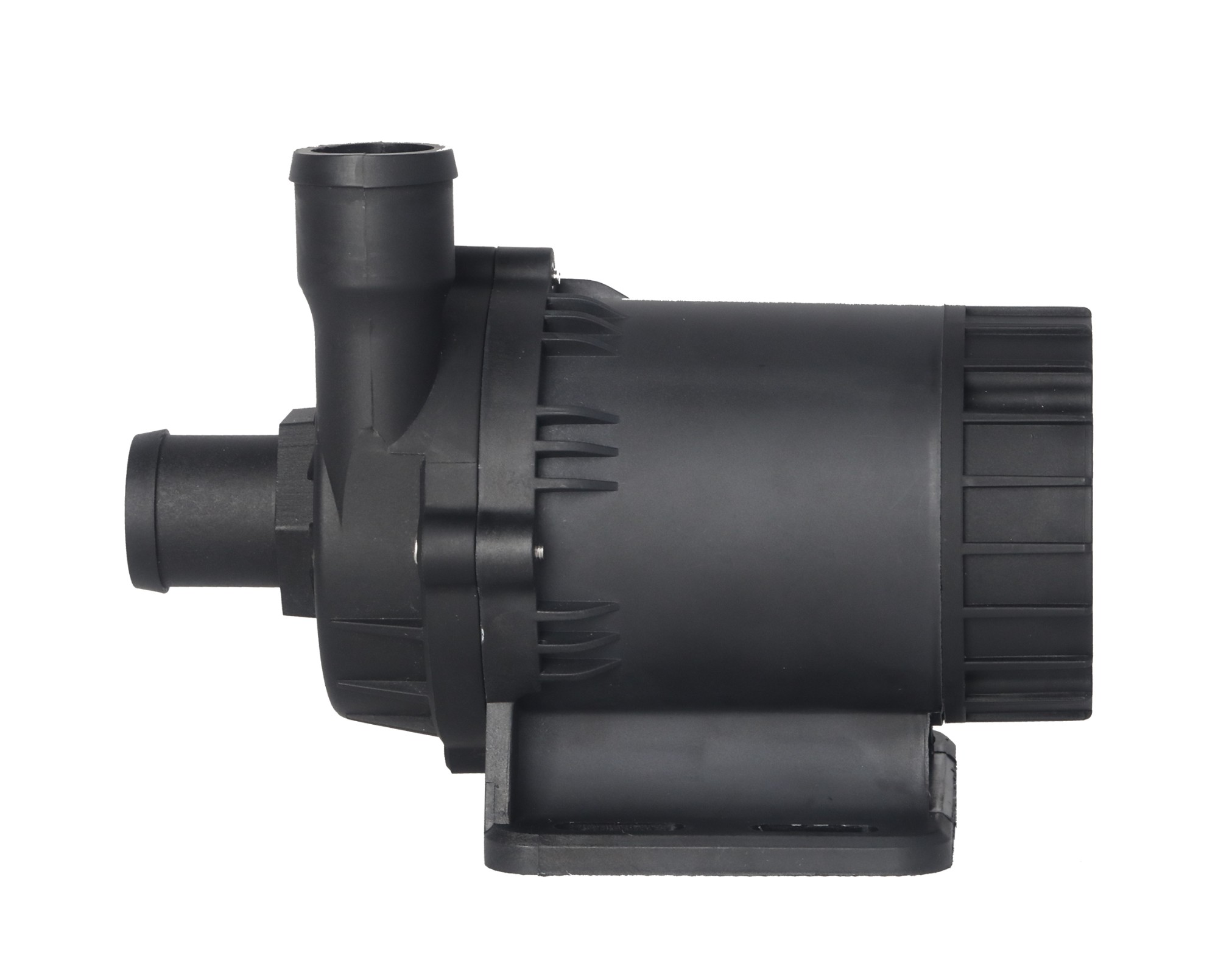

DC60B

ZKSJ Automotive Electronic Water Pump DC60B can be widely used in automotive engine circulating applications. It is with unique design,high efficiency, low power consumption and stability. The long-life brushless motor technology provides you with lifetime maintenance free and silent service.DC60B It is suitable for automotive engine cycle, preheating, parking heating or any other occasion that cannot be used by other circulating pumps.

  • Impeller: Closed Impeller
  • Max head: 10M/12M
  • Weight: 893g
  • Rated voltage: 36Vdc,24Vdc,12Vdc
  • Max flow: 3800L/H
Close
Consulting
Customer service:86-755-27811557


一.Product features

1

Product name:

ZKSJ DC60B pump


2

Model

DC60B

3

Weight

0.89kg

4

Life span

≥30000h

5

Waterproof Grade

IP68

6

Color

Black

7

Certification

CE,ROSH

8

Material of pump shell

PPS+30%GF

9

Noise class

35dB

10

Leakproofness

0.8MPa8kg)

11

insulation grade

H Grade(180°)

12

Working Theory

Centrifugal Pump

13

Usage

  ECO car cooling system,

Circulating cooling system and so on

二.Range of application

1

Used liquid type

Oil, water, normal acid/alkaline liquids or other liquids

2

Used liquid temperature

-30-100(with built-in driver for non-submersible;

with external driver for submersible)

3

Speed regulation method

By PWM: amplitude 5V 50-800HZ

By 0-5V analog signal

By Potentiometer, resistor range 4.7K~20K

4

Used power

DC power supply, solar panel,batteries

三.Essential parameter (the parameter is able to be customized)

1

Specific model

DC60B-12100PWM

DC60B-12100VR

DC60B-12100S

DC60B-24120PWM

DC60B-24120VR

DC60B-24120S

DC60B-36120PWM

DC60B-36120VR

DC60B-36120S

PWM:PWM speed regulation(50-800HZ/ 5V)

VR:0~5V/potentiometer speed regulation

S:fixed speed

2

Rated voltage

12V DC

24V DC

36V DC


3

Working voltage

5-12V

5-28V

5-40V

In this voltage range, pump can work normally

4

Rated current

5.4A(6.6A)

4.5A(5A)

3A(3.3A)

Closed outlet current(open pumping current)

5

Input power

65W(80W)

108W(120W)

108W(120W)

Closed outlet power (open pumping power)

6

Max flow rate

3200L/H

3800L/H

3800L/H

Flow rate without lifting height(horizontal flow rate)

7

Max. Head

10M

12M

12M

Static head

8

Min. Input current

12V-7A

24V-6A

36V-4A


四.Additional function instructions

1

K-Jam protection

When the pump is stuck, it will stop working

2

Water shortage/Dry run protection

When the pump is short of water or idling, the pump will cyclically stop (8 seconds) and run (2 seconds), and the protection strategy can be customized

3

Overloading protection

When the voltage is unstable or exceeds the rated power, the pump stops running.

4

Power reverse connection

wrong connection of the power supply(positive and negative), the water pump stops running, and then re-connected, can work normally.




Pump with built-in driver

 图片关键词

For external use




Pump with external driver

 图片关键词

Suitable for high temperature or corrosive solution submersible installation

Dimensions of pump

图片关键词
