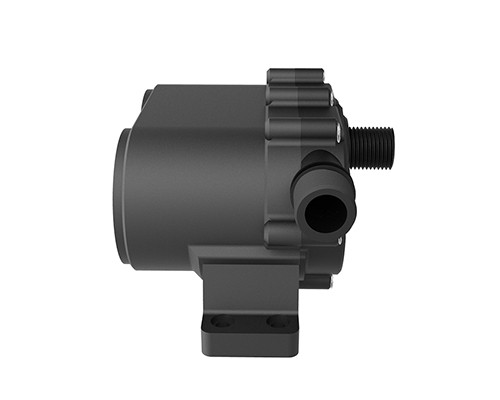

DC55JE

一.Product Feature1Product nameZKSJ DC55JE Brushless DC Pump2Model No.DC55JE3Weight:1.25kg4Life span:≥30000h5Waterproof Grade:IP686Color:Black7CertificationCE,ROSH8Material of pump shellPPS+30%GF9

  • Impeller: Closed Impeller
  • Max head: 32M
  • Weight: 1.25kg
  • Rated voltage: 24Vdc,12Vdc
  • Max flow: 2000L/H
Close
Consulting
Customer service:86-755-27811557

一.Product Feature


1

Product name

ZKSJ DC55JE Brushless DC Pump


2

Model No.

DC55JE


3

Weight:

1.25kg


4

Life span:

≥30000h


5

Waterproof Grade:

IP68


6

Color:

Black


7

Certification

CE,ROSH


8

Material of pump shell

PPS+30%GF


9

Noise Class:

≤35dB


10

Leakproofness

≥0.5MPa(5kg)


11

Insulation grade:

H Grade(180°)


12

Working principle:

Centrifugal pump


13

Application

Circulating system, and all kinds of application


二.Range


1

Liquid Type

Oil, water, and other liquids


2

Liquid Temperature

-30℃-100℃(with built-in driver for non-submersible;

with external driver for submersible)


3

Speed regulation

method(optional)

PWM Speed:amplitude 5V 50-800HZ

Can be customized

0-5V Speed

Potentiometer speed regulation:The resistance range 4.7K~20K


4

Power

DC Power Supply,Solar Panel, Battery


三.Basic parameters (parameters can be customized)


1

Model No.

DC55JE-12240PWM

DC55JE-12240VR

DC55JE-12240S

DC55JE-24320PWM

DC55JE-24320VR

DC55JE-24320S

PWM:PWM speed regulation

(50-800HZ/ 5V)

VR:0~5V/potentiometer

speed regulation

S:fixed speed,no speed change


2

Rated Voltage

12V DC

24V DC



3

Working Voltage

5-12V

14-30V

Within this range, the

pump can work normally.


4

Rated Current

8.3A(9.2A)

6.3A(6.7A)

Closed outlet current

(open pumping current)


5

Input power

100W(110W)

150W(160W)

Closed outlet power

(open pumping power)


6

Max. Flow rate

1800L/H

2000L/H

Flow rate without

lifting

height(horizontal flow

rate)


7

Max. head

24M

32M

Static head


8

Mini input power supply

12V-10A

24V-7A



四.Additional function instructions


1

K-jam protection

When the impurity enters the rotor chamber, the rotor stops running, and the pump stops running as well.


2

Water Shortage/Dry run protection

When the pump is short of water or idling, the pump will cyclically stop (8 seconds) and run (2 seconds), and the protection strategy can be customized


3

Overloading protection

When the voltage is unstable or exceeds the rated power, the pump will stop working


4

Power reverse

connection

Wrong connection of the power supply(positive and negative), the water pump will stop

running, and then re-connected, can work normally.





Pump with built-in driver

 图片关键词

For external use




Pump with external driver

 图片关键词

Suitable for high

temperature or corrosive

Solution submersible and external use

Dimensions of pump

图片关键词
