50C
| NO. | Item | Specs |
| 1 | Dimension and weight | 106mmx97.5mmx71.5mm;480g |
| 2 | External diameter of outlet | 1/2” thread(M20) |
| 3 | External diameter of inlet | 1/2” thread(M20) |
| 4 | Driving mechanism | Brush-less, magnetic isolated design |
| 5 | Material of pump shell | ABS,PES/SPS/PPS/PA66+30%GF (Optional) |
| 6 | Condition of use | Can continuously work, submersible or land use (not self-priming) |
| 7 | Suitable medium | Water, oil, or normal acid/ alkaline liquids (Pre-test needed for special liquid) |
| 8 | Max working temperature | 60℃(for T sub-series) or 100℃(for S/A sub-series) |
| 9 | Power consumption | 2.5W~48W(for T sub-series) or 2.5W~86.4W(for S/A sub-series) |
| 10 | Rated voltage | 12Vdc or 24Vdc |
| 11 | Working voltage range | 5Vdc ~ 14Vdc or 5Vdc ~ 26Vdc |
| 12 | Max load current | 2.0A (for T sub-series) or 4.5A(for S/A sub-series) |
| 13 | Max horizontal flow rate | 32L/MIN(for T sub-series) or 40L/MIN(for S/A sub-series) |
| 14 | Max static lift | 4M(for T sub-series) or 8M(for S/A sub-series) |
| 15 | Noise class | <40dB |
| 16 | Waterproof class | IP68(suitable for submersible installation) |
| 17 | Life span | >30,000hrsIP68(suitable for submersible installation) |
| 18 | Power supply | Suitable solar panel, batteries, adapter or other power source |
| 19 | Protection function | Dry-run protection, lock protection(customized function) |
| 20 | Power regulation function | Speed adjustable by PWM signal, 0~5V analog signal or potentiometer (functions are optional for customization) |
| 22 | Feature |
|

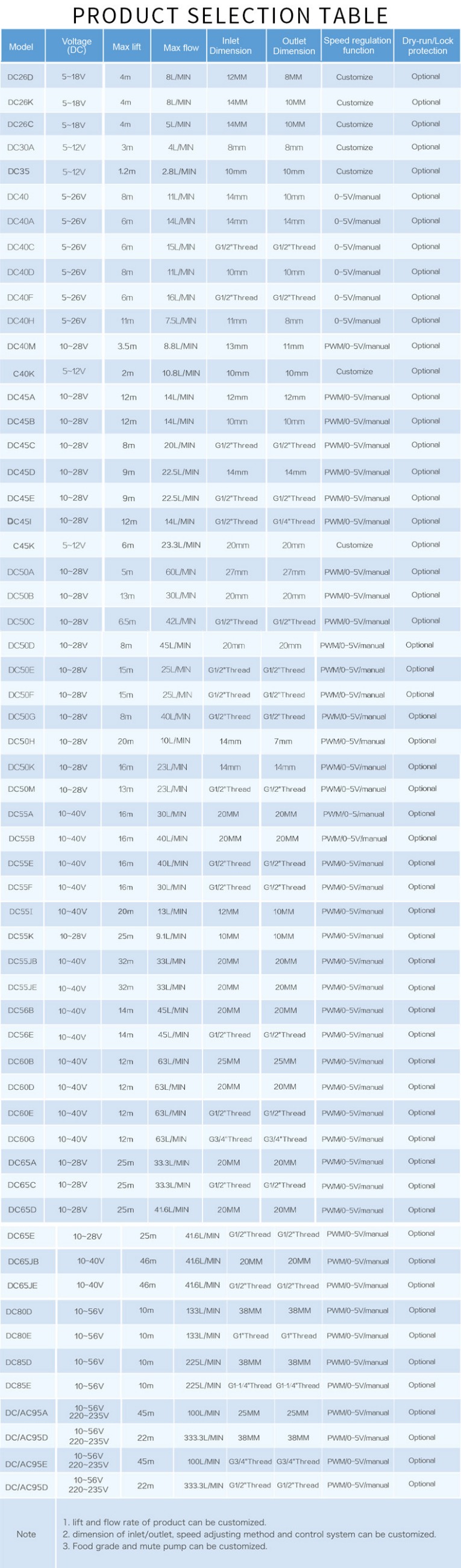

| Model No. | Voltage | Max load current | Max static lift | Max flow rate | Power consumption |
| V(dc) | A | M | L/H | w | |
| DC50C-1230T | 12 | 2.0 | 3.0 | 1680 | 24 |
| DC50C-1230S | |||||
| DC50C-1230A | |||||
| DC50C-1260S | 12 | 4.5 | 6.0 | 2100 | 54 |
| DC50C-1260A | |||||
| DC50C-2440T | 24 | 2.0 | 4.0 | 1920 | 48 |
| DC50C-2440S | |||||
| DC50C-2440A | |||||
| DC50C-2480S | 24 | 3.60 | 8.0 | 2400 | 86.4 |
| DC50C-2480A | |||||
| NOTE |
| ||||
| 2phase (T sub-series) | Hall sensor driving, circuit board should be placed inside pump body |
| 3phase (S/A sub-series) |
|
Potentiometer Speed adjusting connection:
Contact the red and black wire to both ends of potentiometer(variable resistor),then contact the yellow wire to the middle of potentiometer,Speed canbe changed by turning the potentiometer. Potentiometer speed adjusting is the same with VR speed adjusting(Remove the potentiometer and contact the speed adjusting wire like VR speed adjusting connection bellow).
PWM(50-800HZ/Amlitude 5V) or VR(0-5V) Speed adjusting connection:
Contact the yellow wire to the control system's speed control signal output interface(PWM or VR) and contact the black wire to the ground lead in the control system.hang the red wire on the air.
