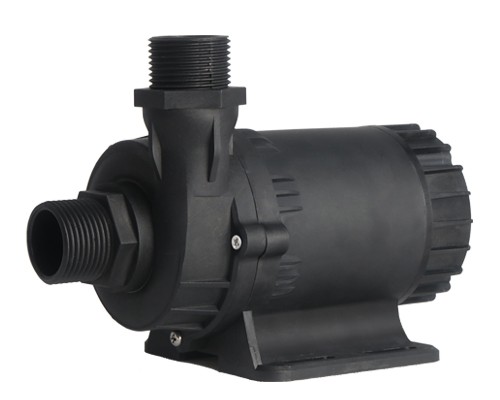

DC80E

80E

  • Max flow: DC80E
Close
Consulting
Customer service:86-755-27811557
Specifications
NO.ItemSpecs
1Dimension and weight144mmx213.8mmx147.3mm; 2.1kg
2External diameter of outlet32mm
3External diameter of inlet32mm
4Driving mechanismBrush-less, magnetic isolated design
5Material of pump shellABS,PES/SPS/PPS/PA66+30%GF (Optional)
6Condition of useCan continuously work, submersible or land use (not self-priming)
7Suitable mediumWater, oil, or normal acid/ alkaline liquids
8Max working temperature120℃
3-phase pump with controller inside for submersible installation
3-phase pump with controller inside for nonsubmersible installation
9Power consumption80W/120W
10Rated voltage12Vdc or 24Vdc
11Working voltage range5Vdc ~ 14Vdc or 5Vdc ~ 26Vdc
12Max load current6.6A/5A
13Max horizontal flow rate3800L/H   4600L/H
14Max static lift8M/11M
15Noise class<40dB
16Waterproof classIP68(suitable for submersible installation)
17Life span>30,000hrsIP68(suitable for submersible installation)
18Power supplySuitable solar panel, batteries, adapter or other power source
19Protection functionDry-run protection, lock protection(customized function)
20Power regulation functionSpeed adjustable by PWM signal, 0~5V analog signal or potentiometer (functions are optional for customization)
22Feature
  • small size with high efficiency,maintenance-free

  • Use ceramics shaft and carbon fiber sleeve

  • Completely water proof (IP68)

  • Brush-less dc control without pollution, long life span

  • OEM and ODM service accept

  • Offer Pump related control system design

Electrical parameters (only for reference,parameters can be customized for specific requirements)

Model No.VoltageMax load currentMax static liftMax flow ratePower consumption

V(dc)AML/Hw
DC80D-1265S126.68380080
DC80D-1265A
DC80D-2480S245114600120
DC80D-2480A
     NOTE
  •  Information including continuous working time, working temperature and medium is required to be pre-confirmed with professionals; pump cannot work with high temperature or corrosive fluids.

  •  When pump is connected into circulation system, load current will be reduced to 70~85% of Max working current (opening outlet current).

  •  The head means the Max vertical lifting height of water,the flow is 0L/MIN@max head.

  •  The max flow rate means flow rate with no lifting height(according to the curve bellow)
